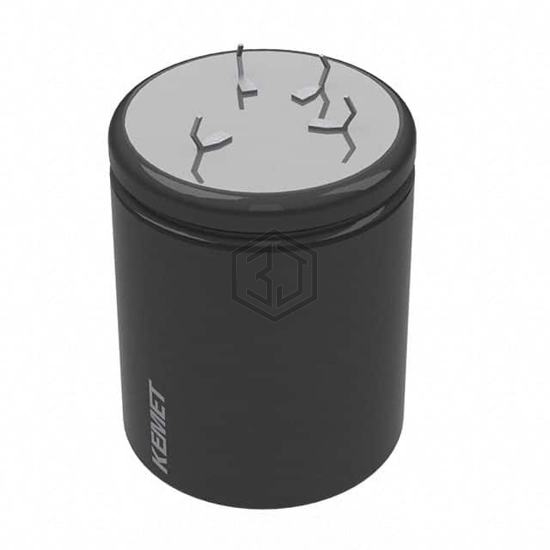

CAP ALUM 560UF 20% 500V SNAP
ALC70E561EF500 is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 560UF 20% 500V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Snap-In - 4 Lead.
In Stock: 6,702
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 370mOhm @ 100Hz |
| Lifetime @ Temp. | 18000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.02 A @ 100 Hz |
| Ripple Current @ High Frequency | 6.04 A @ 10 kHz |
| Impedance | 264 mOhms |
| Lead Spacing | 0.886" (22.50mm) |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43521C0567M000 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 420V RADIAL | 90% | View |
| B43511A0567M000 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 420V SNAP | 89% | View |
| ALA7DF561DE450 | KEMET | CAP ALUM 560UF 20% 450V SNAP | 85% | View |
| B43501A3567M67 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 385V SNAP | 84% | View |
| MAL225717561E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 450V SNAP | 83% | View |
| 567LBB350M2EF | Cornell Dubilier / Illinois Capacitor | CAP ALUM 560UF 20% 350V SNAP | 77% | View |
