CAP ALUM 3300UF 20% 350V SNAP

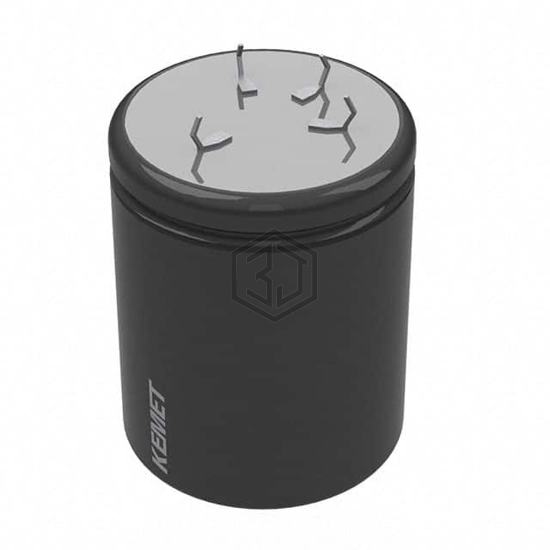

ALC70C332FP350 is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 3300UF 20% 350V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 350 V, package / case Radial, Can - Snap-In - 4 Lead.
In Stock: 1,019
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | 47mOhm @ 100Hz |
| Lifetime @ Temp. | 18000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 8.14 A @ 100 Hz |
| Ripple Current @ High Frequency | 15.8 A @ 10 kHz |
| Impedance | 26 mOhms |
| Lead Spacing | 0.886" (22.50mm) |
| Size / Dimension | 1.772" Dia (45.00mm) |
| Height - Seated (Max) | 4.213" (107.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead |
Submit your RFQ for ALC70C332FP350 and get a quote within 24 hours.
