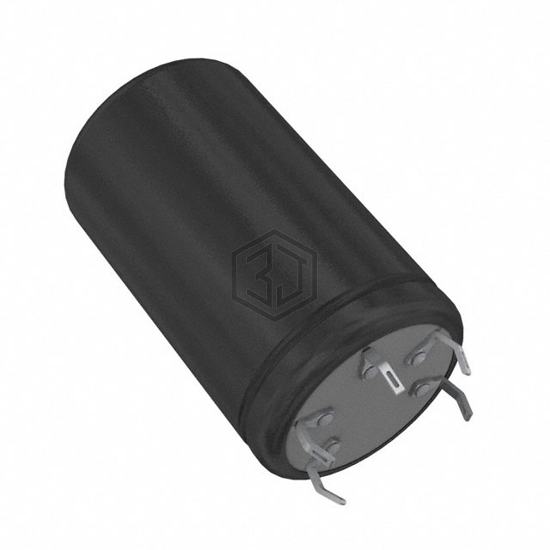

CAP ALUM 470UF 20% 500V SNAP
ALC40G471EG500 is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 470UF 20% 500V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 500 V, package / case Radial, Can - Snap-In - 5 Lead.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 480mOhm @ 100Hz |
| Lifetime @ Temp. | 9000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.3 A @ 100 Hz |
| Ripple Current @ High Frequency | 6.42 A @ 10 kHz |
| Impedance | 390 mOhms |
| Lead Spacing | 0.984" (25.00mm) |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 2.244" (57.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 5 Lead |
Submit your RFQ for ALC40G471EG500 and get a quote within 24 hours.
