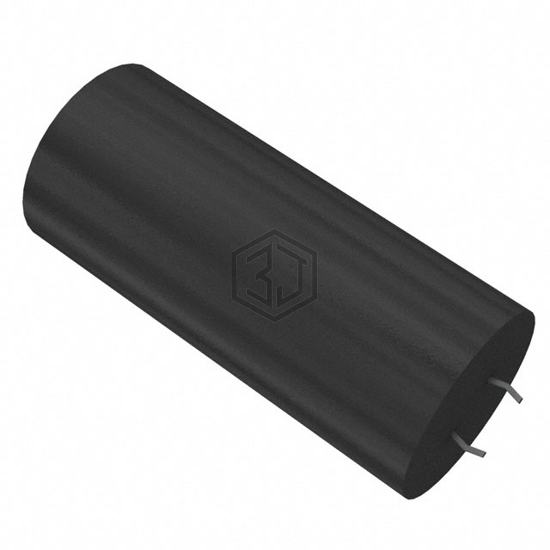

CAP ALUM 680UF 20% 400V SNAP
ALC40A681DL400 is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 680UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 9,657
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 200mOhm @ 100Hz |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.72 A @ 100 Hz |
| Ripple Current @ High Frequency | 6.69 A @ 10 kHz |
| Impedance | 131 mOhms |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 3.228" (82.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43544A9687M067 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 400V SNAP | 94% | View |
| B43508B9687M7 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 400V SNAP | 73% | View |
| LGW2E681MELC25 | Nichicon | CAP ALUM 680UF 20% 250V SNAP | 63% | View |
| LGW2E681MELA40 | Nichicon | CAP ALUM 680UF 20% 250V SNAP | 63% | View |
| EKXJ161ELL681MM45S | United Chemi-Con | CAP ALUM 680UF 20% 160V RADIAL | 58% | View |
| B43508E2687M | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 250V SNAP | 57% | View |
Submit your RFQ for ALC40A681DL400 and get a quote within 24 hours.
