CAP ALUM 1000UF 20% 500V SNAP

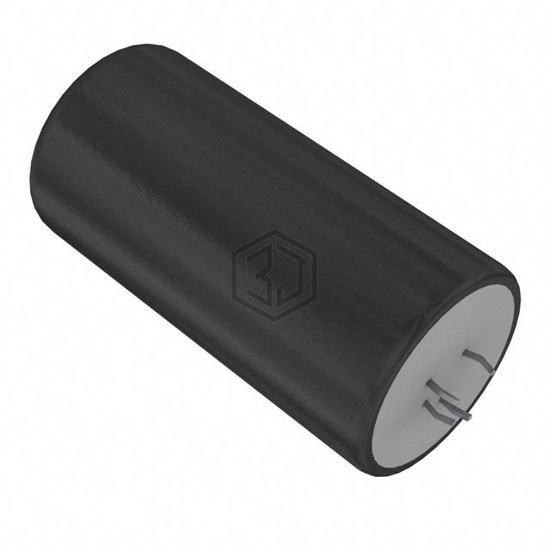

ALC10C102EP500 is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 1000UF 20% 500V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Snap-In - 4 Lead.
In Stock: 902
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 140mOhm @ 100Hz |
| Lifetime @ Temp. | 18000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.43 A @ 100 Hz |
| Ripple Current @ High Frequency | 9.18 A @ 10 kHz |
| Impedance | 98 mOhms |
| Lead Spacing | 0.886" (22.50mm) |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 4.213" (107.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead |
