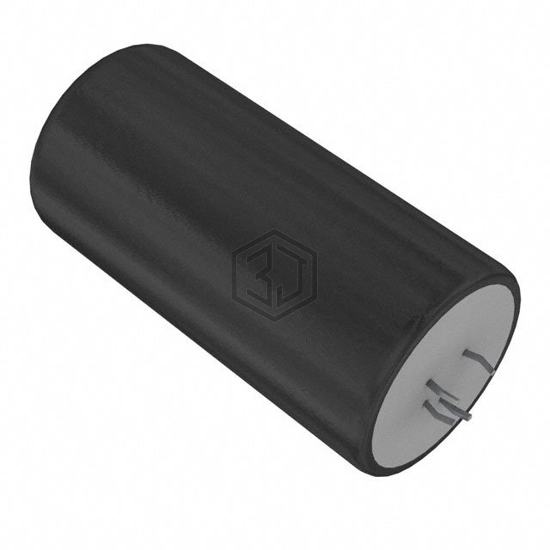

CAP ALUM 1000UF 20% 400V SNAP
ALC10C102EL400 is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 1000UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Snap-In - 4 Lead.
In Stock: 1,047
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 120mOhm @ 100Hz |
| Lifetime @ Temp. | 18000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5 A @ 100 Hz |
| Ripple Current @ High Frequency | 8.82 A @ 10 kHz |
| Impedance | 78 mOhms |
| Lead Spacing | 0.886" (22.50mm) |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 3.228" (82.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead |
Submit your RFQ for ALC10C102EL400 and get a quote within 24 hours.
