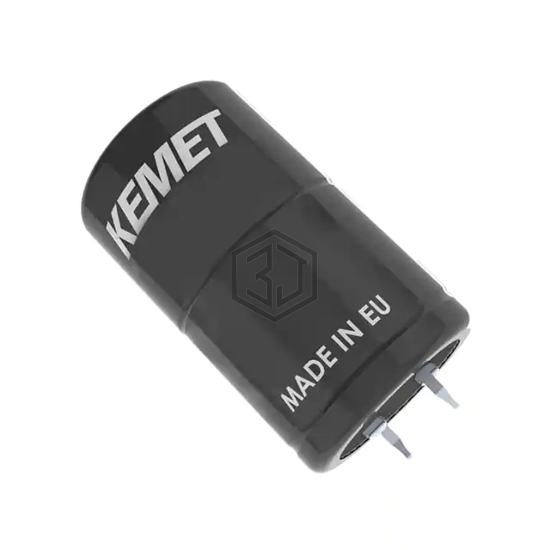

CAP ALUM 430UF 20% 450V SNAP
ALA8DF431CF450 is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 430UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 942
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 430 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 318.2mOhm @ 100Hz |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 2.91 A @ 100 Hz |
| Ripple Current @ High Frequency | 7.14 A @ 10 kHz |
| Impedance | 147 mOhms |
| Lead Spacing | - |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
Submit your RFQ for ALA8DF431CF450 and get a quote within 24 hours.
