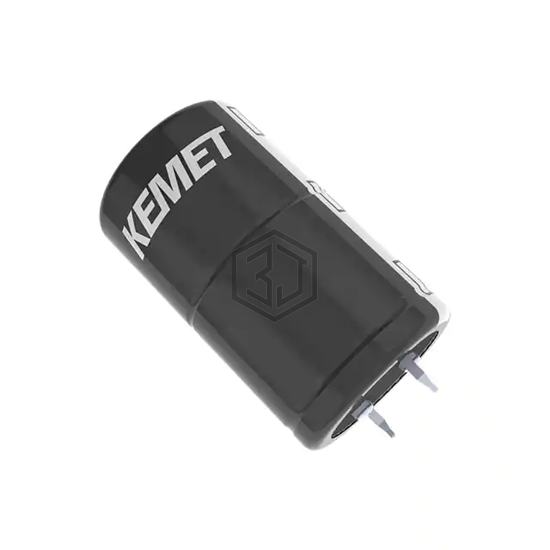

CAP ALUM 300UF 20% 600V SNAP
ALA7DA301DF600 is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 300UF 20% 600V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 600 V, package / case Radial, Can - Snap-In.
In Stock: 484
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 600 V |
| ESR (Equivalent Series Resistance) | 430mOhm @ 100Hz |
| Lifetime @ Temp. | 15000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 2.5 A @ 100 Hz |
| Ripple Current @ High Frequency | 5.2 A @ 10 kHz |
| Impedance | 297 mOhms |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
Submit your RFQ for ALA7DA301DF600 and get a quote within 24 hours.
