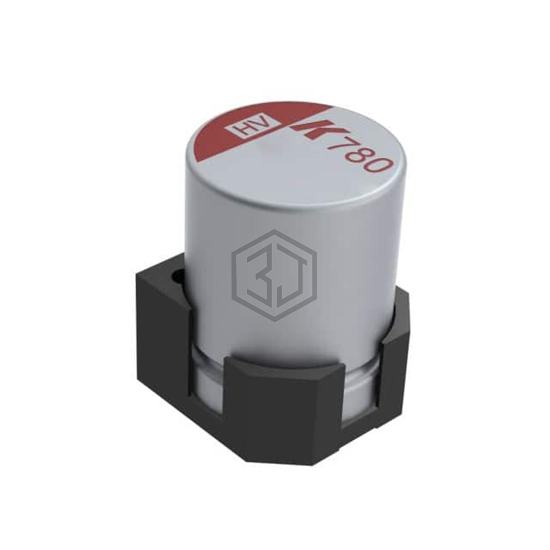

CAP ALUM POLY HYB 560UF 25V SMD
A780MS567M1ELAV022 is a Aluminum - Polymer Capacitors manufactured by KEMET. CAP ALUM POLY HYB 560UF 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 8,001
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 22mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 880 mA @ 100 Hz |
| Ripple Current @ High Frequency | 2.2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEH-ZS1E561V | Panasonic Electronic Components | CAP ALUM POLY 560UF 20% 25V SMD | 77% | View |
| EEH-ZT1E561UV | Panasonic Electronic Components | CAP ALUMHYB 560UF 20% 25V SMD | 77% | View |
| GYC1E561MNZ1GS | Nichicon | CAP ALUMHYB 560UF 20% 25V SMD | 77% | View |
| GWC1E561MNU1GS | Nichicon | 25V 560F HYBRID POLYMER CHIP CHI | 75% | View |
| B40910A5567M100 | EPCOS - TDK Electronics | CAP ALUM POLY HYB 560UF 25V SMD | 73% | View |
| RSHVK561M1TFK5002E | Elna America | CAP ALUM POLY HYB 560UF 25V SMD | 67% | View |
