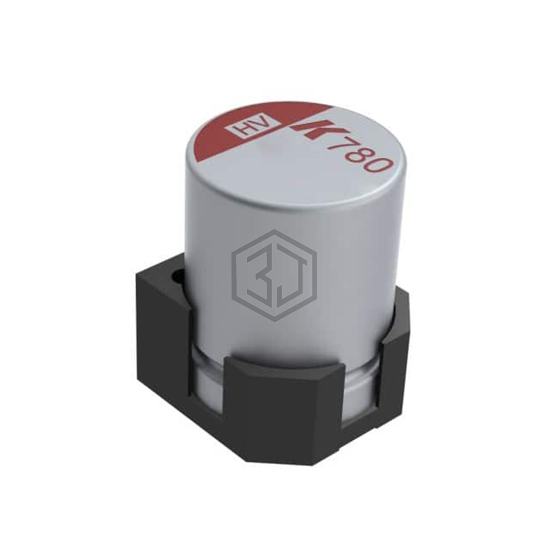

CAP ALUM POLY HYB 270UF 35V SMD
A780MS277M1VLAS022 is a Aluminum - Polymer Capacitors manufactured by KEMET. CAP ALUM POLY HYB 270UF 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 1,528
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 22mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 880 mA @ 100 Hz |
| Ripple Current @ High Frequency | 2.2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| A780MN277M1VLAS025 | KEMET | CAP ALUM HYB 270UF 20% 35V SMD | 89% | View |
| HHXC250ARA271MJA0G | United Chemi-Con | CAP ALUM POLY 270UF 20% 25V SMD | 83% | View |
| EEH-ZV1V271P | Panasonic Electronic Components | CAP ALUMHYB 270UF 20% 35V SMD | 77% | View |
| EEH-ZS1H271UV | Panasonic Electronic Components | CAP ALUM POLY HYB 270UF 50V SMD | 73% | View |
| 35PFV270M10X10.5 | Rubycon | CAP ALUM POLY HYB 270UF 35V SMD | 71% | View |
| GYD1E271MCQ1GS | Nichicon | CAP ALUM POLY HYB 270UF 25V SMD | 59% | View |
