ALUMINUM ELECTROLYTIC, SOLID POL

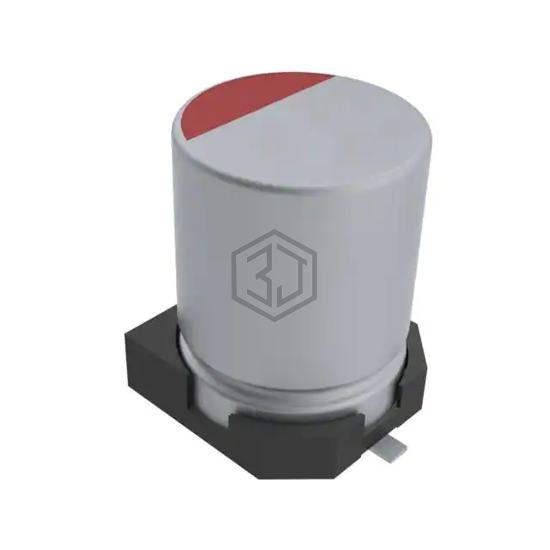

A769KS227M1VLAS016 is a Aluminum - Polymer Capacitors manufactured by KEMET. ALUMINUM ELECTROLYTIC, SOLID POL. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 2,786
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 135 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.7 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PCR1V221MCL1GS | Nichicon | CAP ALUM POLY 220UF 20% 35V SMD | 93% | View |
| PCH1V221MCL1GS | Nichicon | CAP ALUM POLY 220UF 20% 35V SMD | 92% | View |
| PCZ1V221MCL1GS | Nichicon | CAP ALUM POLY 220UF 20% 35V SMD | 86% | View |
| A768MS227M1GLAV022 | KEMET | CAP ALUM POLY 220UF 20% 40V SMD | 86% | View |
| APXD2R5ARA221MF61G | United Chemi-Con | CAP ALUM POLY 220UF 20% 2.5V SMD | 69% | View |
| PCX1C221MCL1GS | Nichicon | CAP ALUM POLY 220UF 20% 16V SMD | 66% | View |
Submit your RFQ for A769KS227M1VLAS016 and get a quote within 24 hours.
