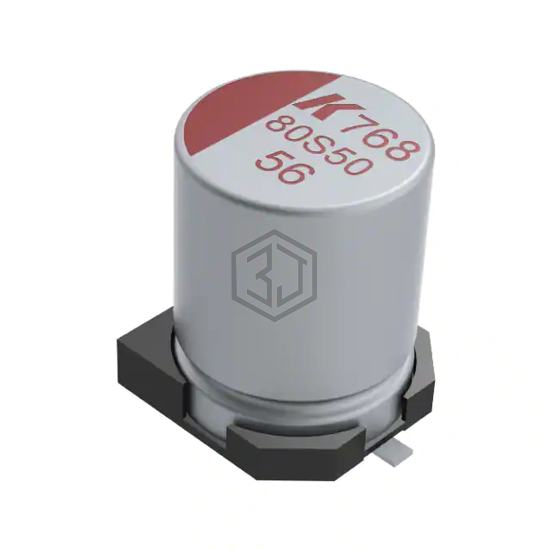

CAP ALUM POLY 56UF 20% 35V SMD
A768EB566M1VLAS042 is a Aluminum - Polymer Capacitors manufactured by KEMET. CAP ALUM POLY 56UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 2,998
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 42mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 58.75 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.175 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| A768EB566M1VLAE042 | KEMET | CAP ALUM POLY 56UF 20% 35V SMD | 100% | View |
| PCX1E560MCS1GS | Nichicon | CAP ALUM POLY 56UF 20% 25V SMD | 80% | View |
| PCX1D560MCS1GS | Nichicon | CAP ALUM POLY 56UF 20% 20V SMD | 74% | View |
| APXD6R3ARA560ME61G | United Chemi-Con | CAP ALUM POLY 56UF 20% 6.3V SMD | 66% | View |
| A768MS566M1KLAE034 | KEMET | CAP ALUM POLY 56UF 20% 80V SMD | 59% | View |
| APXH100ARA560MF60G | United Chemi-Con | CAP ALUM POLY 56UF 20% 10V SMD | 50% | View |
Submit your RFQ for A768EB566M1VLAS042 and get a quote within 24 hours.
