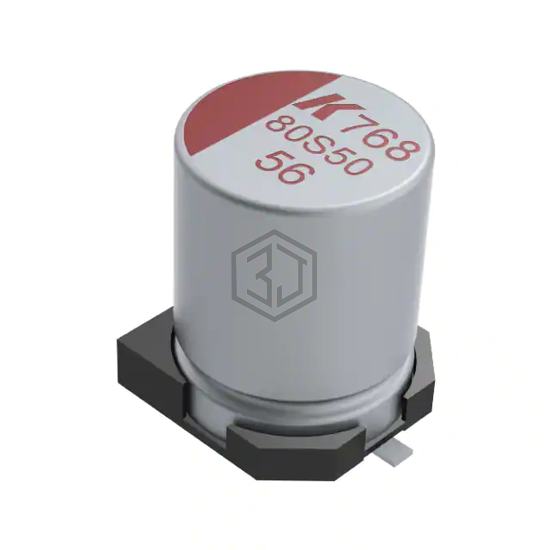

CAP ALUM POLY 22UF 20% 50V SMD
A768EB226M1HLAE048 is a Aluminum - Polymer Capacitors manufactured by KEMET. CAP ALUM POLY 22UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 6,664
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 48mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 55 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PCR1J220MCL1GS | Nichicon | CAP ALUM POLY 22UF 20% 63V SMD | 90% | View |
| PCX1H220MCS1GS | Nichicon | CAP ALUM POLY 22UF 20% 50V SMD | 86% | View |
| 50SVPK22M | Panasonic Electronic Components | CAP ALUM POLY 22UF 20% 50V SMD | 86% | View |
| PCX1H220MCL6GS | Nichicon | CAP ALUM POLY 22UF 20% 50V SMD | 86% | View |
| 35SVPK22M | Panasonic Electronic Components | CAP ALUM POLY 22UF 20% 35V SMD | 75% | View |
| 35SVF22M | Panasonic Electronic Components | CAP ALUM POLY 22UF 20% 35V SMD | 75% | View |
Submit your RFQ for A768EB226M1HLAE048 and get a quote within 24 hours.
