CAP ALUM POLY 220UF 20% 6.3V SMD

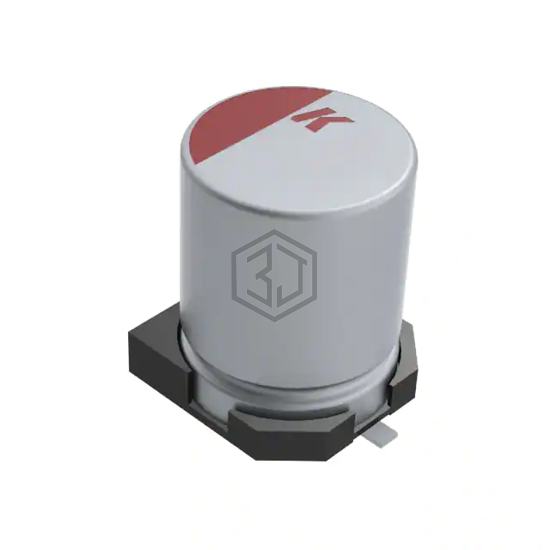

A766EB227M0JLAE022 is a Aluminum - Polymer Capacitors manufactured by KEMET. CAP ALUM POLY 220UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 9,268
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 22mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 128.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.57 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 6SVPC220M | Panasonic Electronic Components | CAP ALUM POLY 220UF 20% 6.3V SMD | 95% | View |
| 6SVPE220MW | Panasonic Electronic Components | CAP ALUM POLY 220UF 20% 6.3V SMD | 90% | View |
| 2R5SVP220M | Panasonic Electronic Components | CAP ALUM POLY 220UF 20% 2.5V SMD | 75% | View |
| A768MS227M1GLAV022 | KEMET | CAP ALUM POLY 220UF 20% 40V SMD | 72% | View |
| 875115460007 | Würth Elektronik | CAP ALUM POLY 220UF 20% 20V SMD | 70% | View |
| PCX1C221MCL1GS | Nichicon | CAP ALUM POLY 220UF 20% 16V SMD | 68% | View |
