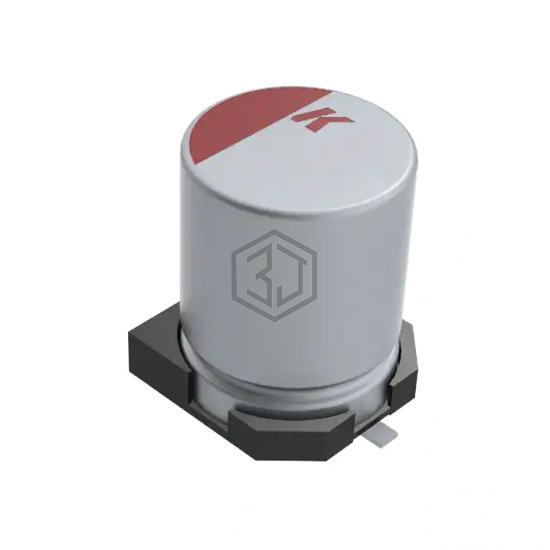

CAP ALUM POLY 120UF 20% 10V SMD
A766EB127M1ALAE027 is a Aluminum - Polymer Capacitors manufactured by KEMET. CAP ALUM POLY 120UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 4,844
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 27mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 116 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.32 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| APXS100ARA121MF61G | United Chemi-Con | CAP ALUM POLY 120UF 20% 10V SMD | 100% | View |
| PCJ1A121MCL1GS | Nichicon | CAP ALUM POLY 120UF 20% 10V SMD | 97% | View |
| RSPVM1011LDC7002E | Elna America | CAP ALUM POLY 120UF 20% 10V SMD | 97% | View |
| A765EB127M1ALAE018 | KEMET | CAP ALUM POLY 120UF 20% 10V SMD | 89% | View |
| PCJ0J121MCL1GS | Nichicon | CAP ALUM POLY 120UF 20% 6.3V SMD | 79% | View |
| MAL218197505E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 120UF 20% 16V SMD | 75% | View |
Submit your RFQ for A766EB127M1ALAE027 and get a quote within 24 hours.
