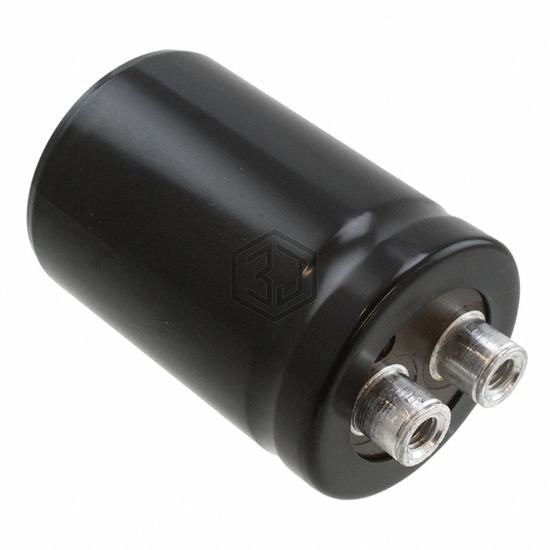

CAP ALUM 220UF 20% 400V SCREW
A331FB221M400A is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 220UF 20% 400V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Screw Terminals.
In Stock: 42
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 570mOhm @ 100Hz |
| Lifetime @ Temp. | 11000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.1 A @ 100 Hz |
| Ripple Current @ High Frequency | 4.4 A @ 10 kHz |
| Impedance | 387 mOhms |
| Lead Spacing | 0.504" (12.80mm) |
| Size / Dimension | 1.417" Dia (36.00mm) |
| Height - Seated (Max) | 2.126" (54.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
Submit your RFQ for A331FB221M400A and get a quote within 24 hours.
