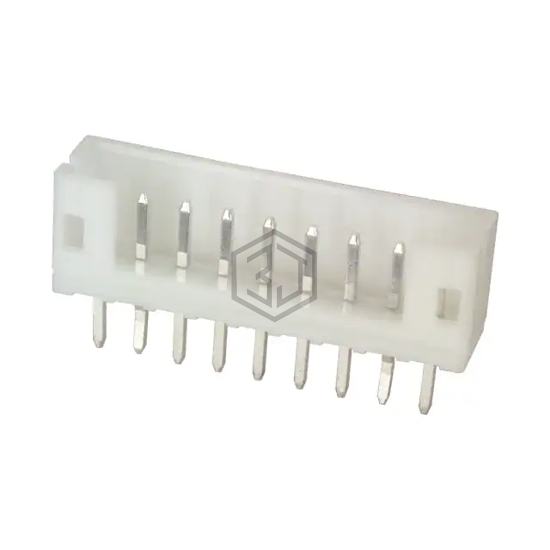

CONN HEADER VERT 9POS 2MM
B9B-PH-K-S(LF)(SN) is a Rectangular Connectors - Headers, Male Pins manufactured by JST Sales America Inc.. CONN HEADER VERT 9POS 2MM. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage rating 100V, contact material Brass.
In Stock: 89,294
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 9 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Press-Fit, Solder |
| Fastening Type | Detent Lock |
| Contact Length - Mating | 0.130" (3.30mm) |
| Contact Length - Post | 0.134" (3.40mm) |
| Overall Contact Length | 0.333" (8.45mm) |
| Insulation Height | 0.236" (6.00mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Features | - |
| Operating Temperature | -25°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | 2A |
| Voltage Rating | 100V |
Submit your RFQ for B9B-PH-K-S(LF)(SN) and get a quote within 24 hours.
