CONN HEADER VERT 2POS 1.5MM

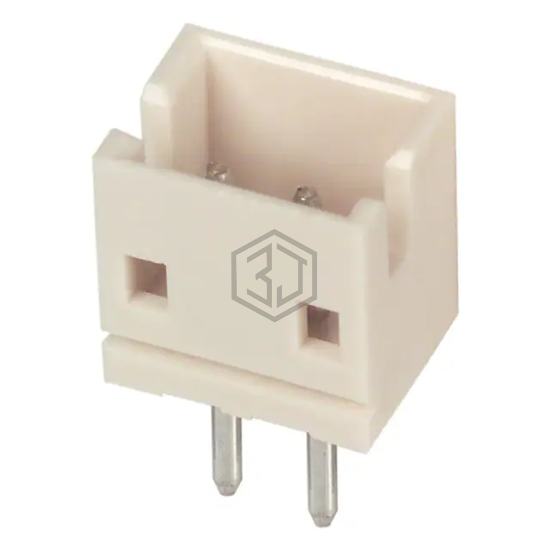

B2B-ZR(LF)(SN) is a Rectangular Connectors - Headers, Male Pins manufactured by JST Sales America Inc.. CONN HEADER VERT 2POS 1.5MM. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage rating 50V, contact material Brass.
In Stock: 86,597
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.059" (1.50mm) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Detent Lock |
| Contact Length - Mating | 0.094" (2.40mm) |
| Contact Length - Post | 0.106" (2.69mm) |
| Overall Contact Length | 0.256" (6.50mm) |
| Insulation Height | 0.177" (4.50mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Features | - |
| Operating Temperature | -25°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | 1A |
| Voltage Rating | 50V |
Submit your RFQ for B2B-ZR(LF)(SN) and get a quote within 24 hours.
