CONN RCPT 22POS 0.049 TIN PCB

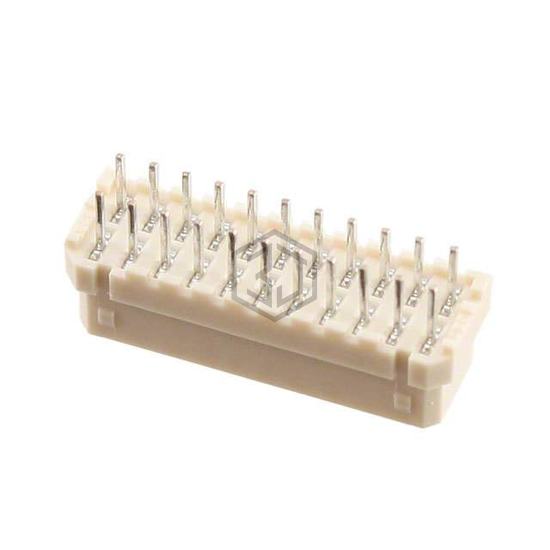

22R-JED(LF)(SN) is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by JST Sales America Inc.. CONN RCPT 22POS 0.049 TIN PCB. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage rating 50V, current rating (amps) 1A.
In Stock: 7,246
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 22 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.049" (1.25mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Friction Lock |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Insulation Color | Natural |
| Insulation Height | 0.173" (4.40mm) |
| Contact Length - Post | 0.079" (2.00mm) |
| Operating Temperature | -25°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | - |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 1A |
| Voltage Rating | 50V |
Submit your RFQ for 22R-JED(LF)(SN) and get a quote within 24 hours.
