FIXED IND 27NH 600MA 120MOHM SMD

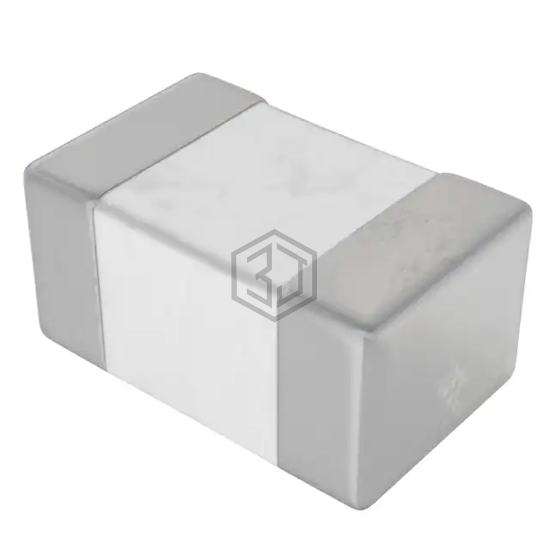

L-15W27NGV4E is a Fixed Inductors manufactured by Johanson Technology Inc.. FIXED IND 27NH 600MA 120MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 0805 (2012 Metric), current rating (amps) 600 mA.
In Stock: 5,500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 27 nH |
| Tolerance | ±2% |
| Current Rating (Amps) | 600 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 120mOhm Max |
| Q @ Freq | 60 @ 500MHz |
| Frequency - Self Resonant | 2.6GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.055" (1.40mm) |
Submit your RFQ for L-15W27NGV4E and get a quote within 24 hours.
