FIXED IND 5.6NH 300MA 300MOHM SM

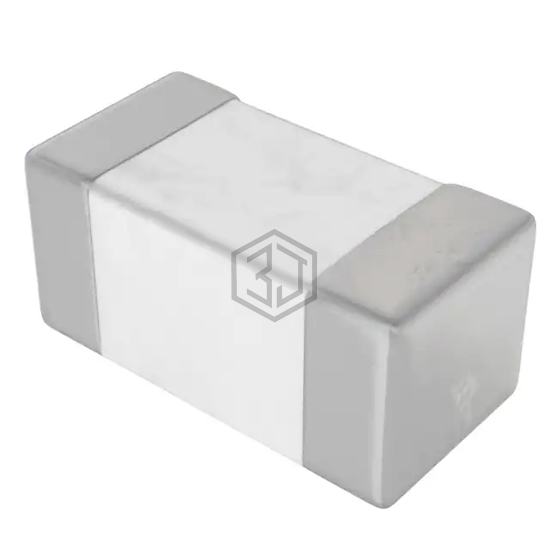

L-14C5N6SV4T is a Fixed Inductors manufactured by Johanson Technology Inc.. FIXED IND 5.6NH 300MA 300MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, package / case 0603 (1608 Metric), current rating (amps) 300 mA.
In Stock: 205,564
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Multilayer |
| Material - Core | Ceramic |
| Inductance | 5.6 nH |
| Tolerance | ±0.3nH |
| Current Rating (Amps) | 300 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 300mOhm Max |
| Q @ Freq | 8 @ 100MHz |
| Frequency - Self Resonant | 4.6GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 100°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.037" (0.95mm) |
Submit your RFQ for L-14C5N6SV4T and get a quote within 24 hours.
