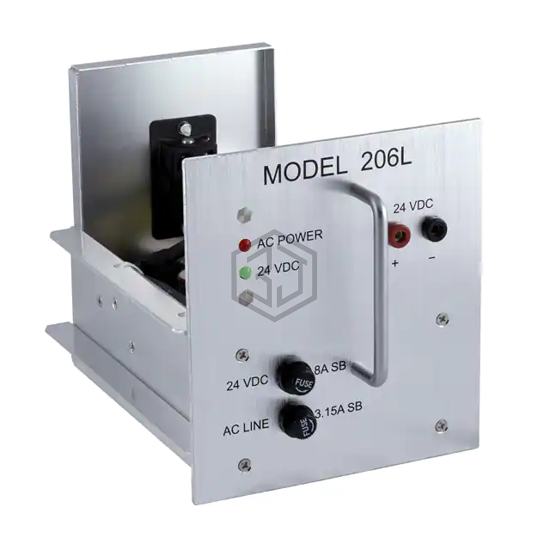

AC/DC CONVERTER 24V 120W
TC206L is a AC DC Converters manufactured by Jasper Electronics. AC/DC CONVERTER 24V 120W. Key specifications: mounting type Rack Mount, operating temperature -37°C ~ 74°C, voltage - input 90 ~ 250 VAC, size / dimension 7.28" L x 5.50" W x 6.00" H (184.9mm x 139.7mm x 152.4mm).
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Front End |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 250 VAC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 5 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 120W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | - |
| Efficiency | 86% |
| Operating Temperature | -37°C ~ 74°C |
| Features | Adjustable Output, Power Factor Correction |
| Mounting Type | Rack Mount |
| Size / Dimension | 7.28" L x 5.50" W x 6.00" H (184.9mm x 139.7mm x 152.4mm) |
| Approval Agency | CSA, FCC, UL |
| Standard Number | 60950-1 |
Submit your RFQ for TC206L and get a quote within 24 hours.
