FIXED IND 2.2NH 300MA 100MOHM SM

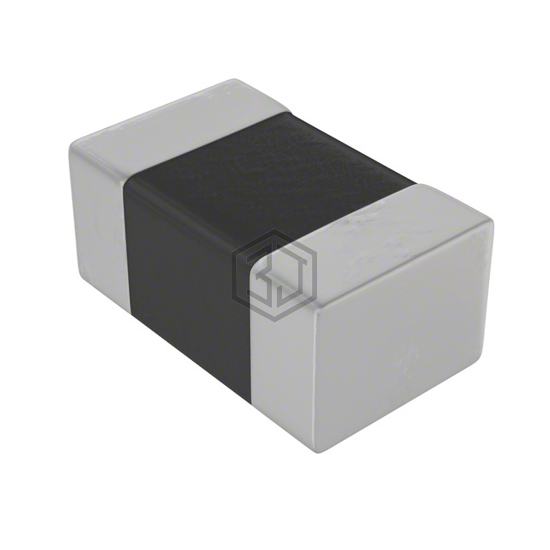

HFI-201209-2N2S is a Fixed Inductors manufactured by Jaro Components Inc.. FIXED IND 2.2NH 300MA 100MOHM SM. Key specifications: mounting type Surface Mount, package / case 0805 (2012 Metric), current rating (amps) 300 mA, size / dimension 0.079" L x 0.049" W (2.00mm x 1.25mm).
In Stock: 14,846
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 2.2 nH |
| Tolerance | ±0.3nH |
| Current Rating (Amps) | 300 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 100mOhm Max |
| Q @ Freq | 10 @ 100MHz |
| Frequency - Self Resonant | 4GHz |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.043" (1.10mm) |
Submit your RFQ for HFI-201209-2N2S and get a quote within 24 hours.
