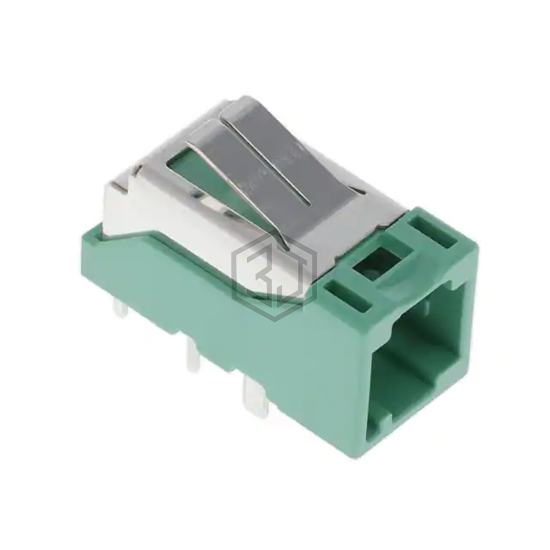

CONN PIN HEADER 4 POS R/A GREEN
MX79A04HQ4R150 is a Rectangular Connectors - Headers, Male Pins manufactured by JAE Electronics. CONN PIN HEADER 4 POS R/A GREEN. Key specifications: mounting type Surface Mount, Right Angle; Through Hole, operating temperature -40°C ~ 85°C, contact material Brass, termination Solder.
In Stock: 722
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 4 (2 + 1 Power + 1 Ground) |
| Number of Rows | 2 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount, Right Angle; Through Hole |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | 0.087" (2.20mm) |
| Overall Contact Length | - |
| Insulation Height | 0.433" (11.00mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Features | Shielded |
| Operating Temperature | -40°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Green |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for MX79A04HQ4R150 and get a quote within 24 hours.
