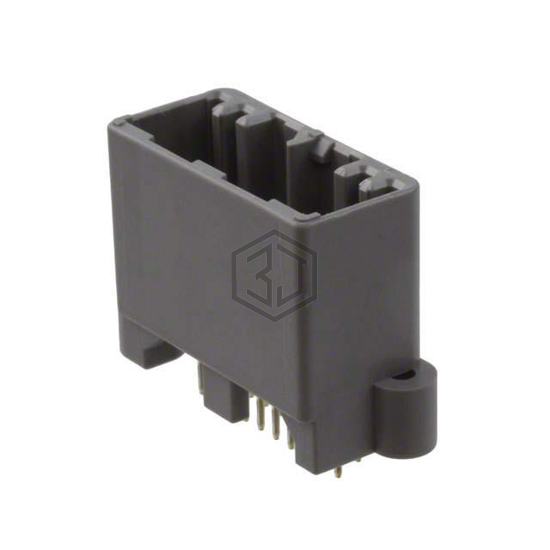

CONN HEADER VERT 20POS 2.2MM
MX34020UF1 is a Rectangular Connectors - Headers, Male Pins manufactured by JAE Electronics. CONN HEADER VERT 20POS 2.2MM. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, contact material Brass, current rating (amps) 3A.
In Stock: 73
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.087" (2.20mm) |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.118" (3.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | 0.303" (7.70mm) |
| Contact Length - Post | 0.126" (3.20mm) |
| Overall Contact Length | - |
| Insulation Height | 0.925" (23.50mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Features | Mounting Flange |
| Operating Temperature | -40°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Gray |
| Current Rating (Amps) | 3A |
| Voltage Rating | - |
Submit your RFQ for MX34020UF1 and get a quote within 24 hours.
