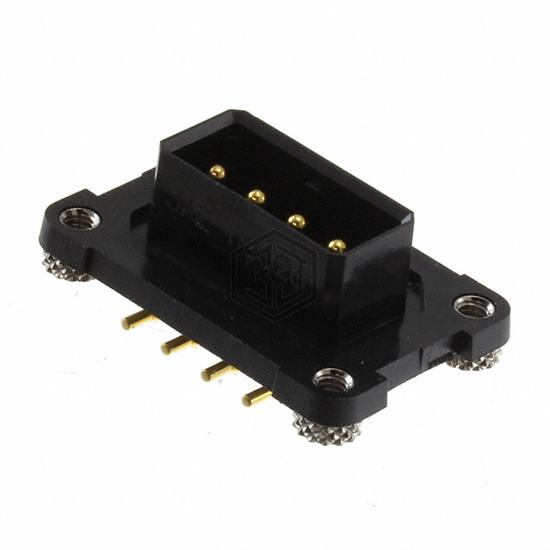

CONN HEADER R/A 4POS 3.2MM
JN4AT04NJ1-R is a Rectangular Connectors - Headers, Male Pins manufactured by JAE Electronics. CONN HEADER R/A 4POS 3.2MM. Key specifications: mounting type Through Hole, Right Angle, operating temperature -20°C ~ 130°C, voltage rating 200VAC, contact material Copper Alloy.
In Stock: 48
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Male Pin |
| Pitch - Mating | 0.126" (3.20mm) |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Threaded |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.343" (8.71mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - |
| Contact Material | Copper Alloy |
| Insulation Material | Synthetic Resin |
| Features | Mounting Flange, Waterproof |
| Operating Temperature | -20°C ~ 130°C |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | - |
| Current Rating (Amps) | 7A |
| Voltage Rating | 200VAC |
