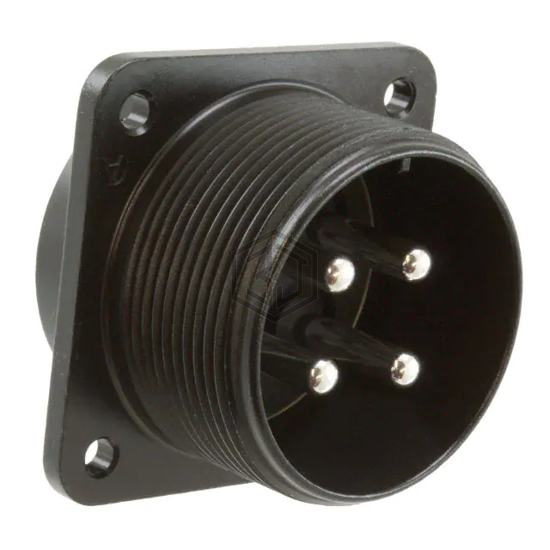

CONN RCPT MALE 4P SOLDER CUP
JL04HV-2E22-22PE-B-R is a Circular Connectors manufactured by JAE Electronics. CONN RCPT MALE 4P SOLDER CUP. Key specifications: mounting type Panel Mount, operating temperature -55°C ~ 125°C, color Black, current rating (amps) 46A.
In Stock: 299
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle, Male Pins |
| Number of Positions | 4 (3 + PE) |
| Shell Size - Insert | 22-22 |
| Shell Size, MIL | - |
| Mounting Type | Panel Mount |
| Mounting Feature | Flange |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Aluminum Alloy |
| Shell Finish | Zinc |
| Contact Finish - Mating | Silver |
| Color | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | - |
| Features | Ground |
| Shielding | - |
| Current Rating (Amps) | 46A |
| Voltage Rating | - |
| Cable Opening | 1.299" (33.00mm) |
| Operating Temperature | -55°C ~ 125°C |
Submit your RFQ for JL04HV-2E22-22PE-B-R and get a quote within 24 hours.
