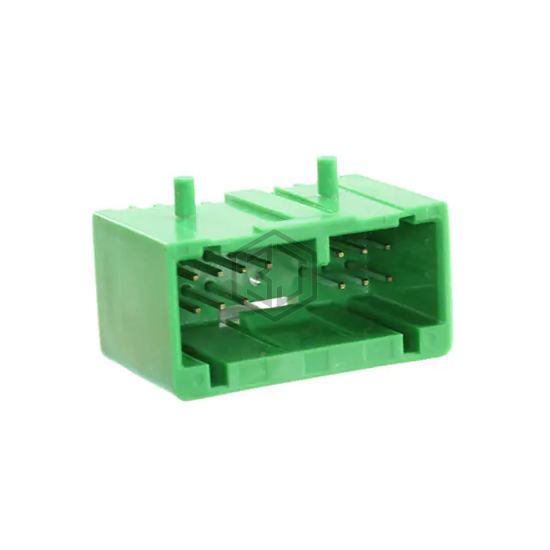

CONN HEADER VERT 16POS 2.5MM
IL-AG5-16P-D3T2-A is a Rectangular Connectors - Headers, Male Pins manufactured by JAE Electronics. CONN HEADER VERT 16POS 2.5MM. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, contact material Brass, current rating (amps) 3A per Contact.
In Stock: 1,499
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.098" (2.50mm) |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.118" (3.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Latch Lock |
| Contact Length - Mating | 0.331" (8.40mm) |
| Contact Length - Post | 0.138" (3.50mm) |
| Overall Contact Length | 0.594" (15.09mm) |
| Insulation Height | 0.717" (18.20mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Green |
| Current Rating (Amps) | 3A per Contact |
| Voltage Rating | - |
Submit your RFQ for IL-AG5-16P-D3T2-A and get a quote within 24 hours.
