CONN HEADER SMD R/A 2POS 1.25MM

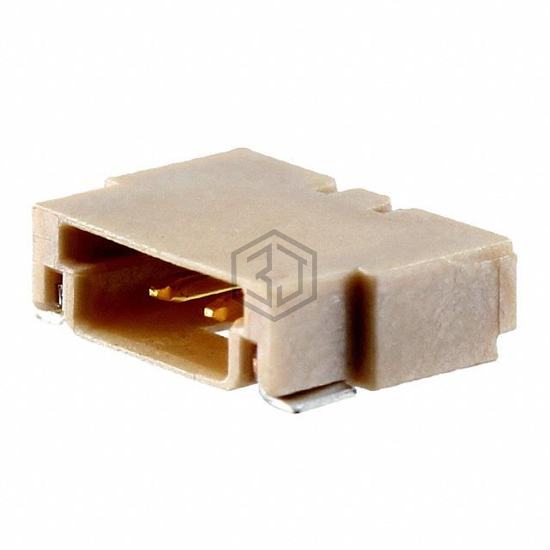

FI-S2P-HFE is a Rectangular Connectors - Headers, Male Pins manufactured by JAE Electronics. CONN HEADER SMD R/A 2POS 1.25MM. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -40°C ~ 80°C, voltage rating 200V, contact material Copper Alloy.
In Stock: 227
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Male Pin |
| Pitch - Mating | 0.049" (1.25mm) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Friction Lock |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.071" (1.80mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin or Tin-Alloy |
| Contact Material | Copper Alloy |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Features | Solder Retention |
| Operating Temperature | -40°C ~ 80°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Beige |
| Current Rating (Amps) | 1A per Contact |
| Voltage Rating | 200V |
