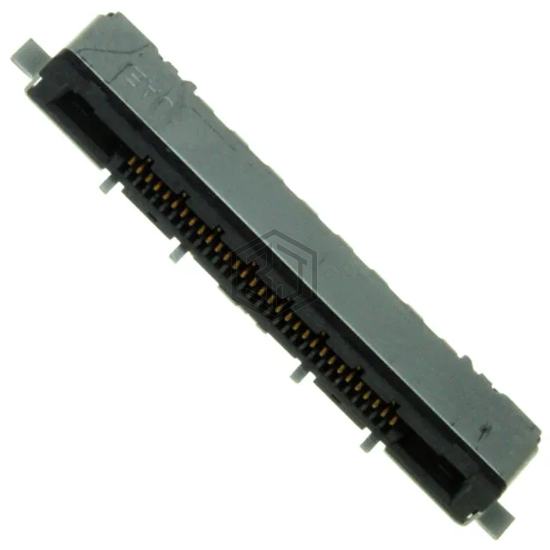

CONN RCPT 31P 0.02 GOLD SMD R/A
FI-RE31S-HF is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by JAE Electronics. CONN RCPT 31P 0.02 GOLD SMD R/A. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -40°C ~ 80°C, current rating (amps) 0.8A per Contact, termination Solder.
In Stock: 141
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Blade Socket |
| Style | Board to Cable/Wire |
| Number of Positions | 31 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.020" (0.50mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Insulation Color | - |
| Insulation Height | 0.148" (3.75mm) |
| Contact Length - Post | - |
| Operating Temperature | -40°C ~ 80°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Shielded, Solder Retention |
| Current Rating (Amps) | 0.8A per Contact |
| Voltage Rating | - |
Submit your RFQ for FI-RE31S-HF and get a quote within 24 hours.
