WATERPROOF IPX7 USB-C RIGHT ANGL

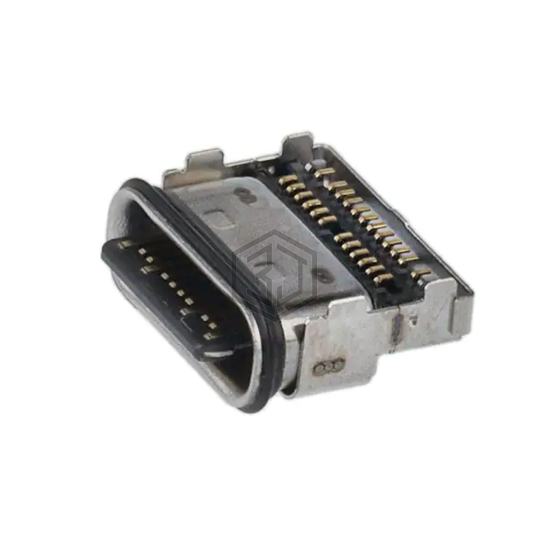

DX07WH24JA3R1200 is a USB, DVI, HDMI Connectors manufactured by JAE Electronics. WATERPROOF IPX7 USB-C RIGHT ANGL. Key specifications: mounting type Surface Mount, Right Angle; Through Hole, operating temperature -30°C ~ 80°C, voltage - rated 20VAC, current rating (amps) 0.25A, 1.25A, 5A, 6.25A.
In Stock: 4,022
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | USB-C (USB TYPE-C) |
| Number of Contacts | 24 |
| Gender | Receptacle |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Mounting Type | Surface Mount, Right Angle; Through Hole |
| Mounting Feature | Horizontal |
| Termination | Solder |
| Features | - |
| Ingress Protection | IPX7 - Waterproof |
| Operating Temperature | -30°C ~ 80°C |
| Number of Ports | 1 |
| Current Rating (Amps) | 0.25A, 1.25A, 5A, 6.25A |
| Voltage - Rated | 20VAC |
| Mating Cycles | 10000 |
| Shielding | Shielded |
