MOSFET N-CH 100V 1220A Y3-LI

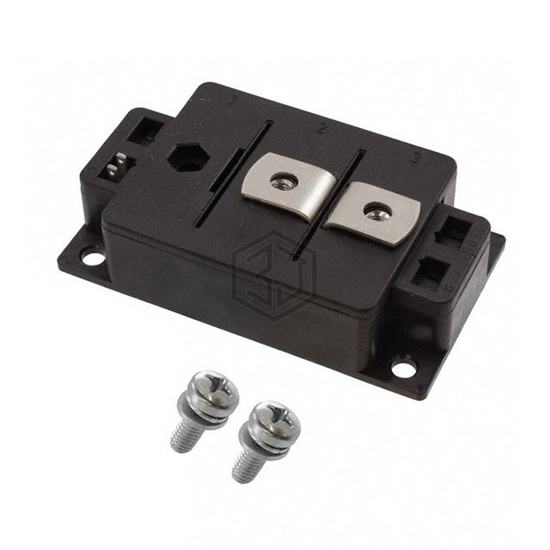

VMO1200-01F is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 100V 1220A Y3-LI. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Y3-Li.
In Stock: 1,139
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 1220A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 1.35mOhm @ 932A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 64mA |
| Gate Charge (Qg) (Max) @ Vgs | 2520 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | - |
| FET Feature | - |
| Power Dissipation (Max) | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Supplier Device Package | Y3-Li |
| Package / Case | Y3-Li |
Submit your RFQ for VMO1200-01F and get a quote within 24 hours.
