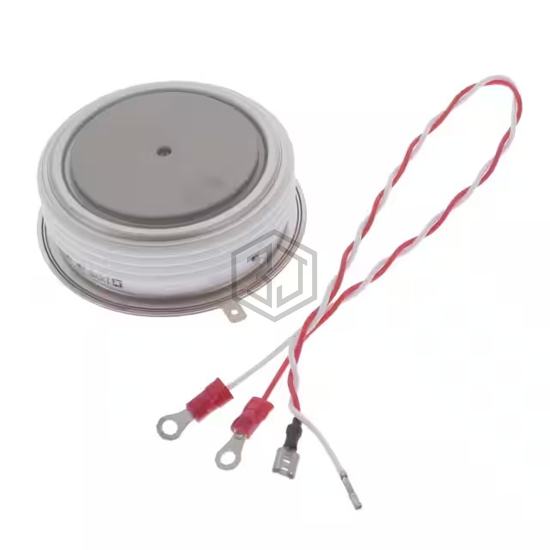

N2600MC160
SCR 1.6KV 5200A W70
N2600MC160 is a Thyristors - SCRs manufactured by IXYS. SCR 1.6KV 5200A W70. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C, package / case TO-200AC, K-PUK.
In Stock: 1,459
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Off State | 1.6 kV |
| Voltage - Gate Trigger (Vgt) (Max) | 3 V |
| Current - Gate Trigger (Igt) (Max) | 300 mA |
| Voltage - On State (Vtm) (Max) | 2 V |
| Current - On State (It (AV)) (Max) | 2600 A |
| Current - On State (It (RMS)) (Max) | 5200 A |
| Current - Hold (Ih) (Max) | 1 A |
| Current - Off State (Max) | 100 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 33000A @ 50Hz |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Chassis Mount |
| Package / Case | TO-200AC, K-PUK |
| Supplier Device Package | W70 |
Frequently Asked Questions
N2600MC160 is a Thyristors - SCRs manufactured by IXYS. SCR 1.6KV 5200A W70
The mounting type of N2600MC160 is Chassis Mount.
The operating temperature range of N2600MC160 is -40°C ~ 125°C.
The package type of N2600MC160 is TO-200AC, K-PUK.
