MOSFET N-CH 100V 334A 24SMPD

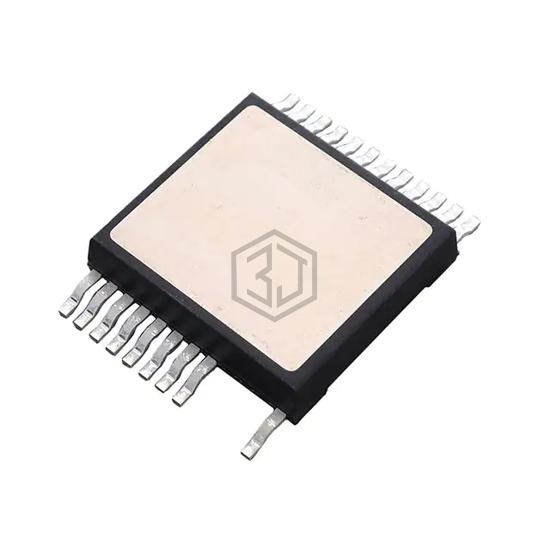

MMIX1F420N10T is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 100V 334A 24SMPD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 24-PowerSMD, 21 Leads.
In Stock: 16
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 334A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 2.6mOhm @ 60A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 8mA |
| Gate Charge (Qg) (Max) @ Vgs | 670 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4700 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 680W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-SMPD |
| Package / Case | 24-PowerSMD, 21 Leads |
Submit your RFQ for MMIX1F420N10T and get a quote within 24 hours.
