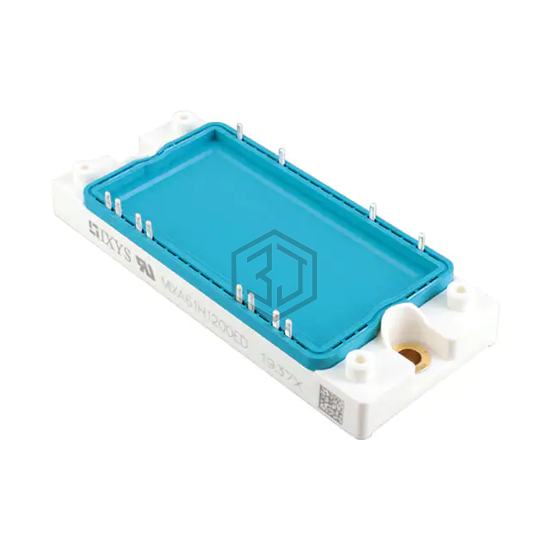

IGBT MODULE 1200V 85A 290W E2
MIXA61H1200ED is a Transistors - IGBTs - Modules manufactured by IXYS. IGBT MODULE 1200V 85A 290W E2. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C (TJ), package / case E2, current - collector (ic) (max) 85 A.
In Stock: 9,553
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | PT |
| Configuration | Full Bridge Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 85 A |
| Power - Max | 290 W |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 55A |
| Current - Collector Cutoff (Max) | 500 µA |
| Input Capacitance (Cies) @ Vce | - |
| Input | Standard |
| NTC Thermistor | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | E2 |
| Supplier Device Package | E2 |
Submit your RFQ for MIXA61H1200ED and get a quote within 24 hours.
