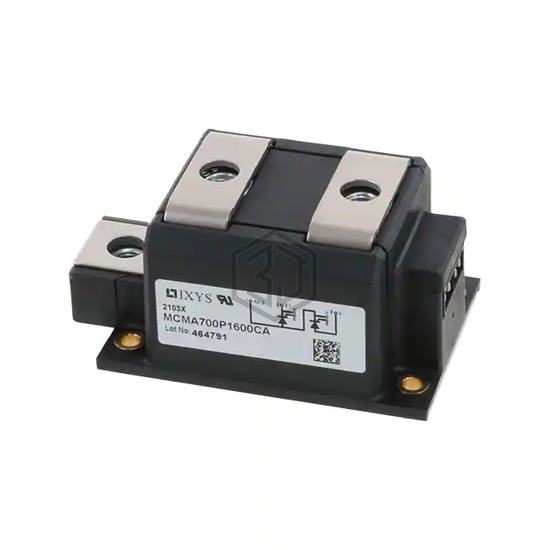

SCR MODULE 1.6KV 700A COMPACK
MCMA700P1600CA is a Thyristors - SCRs - Modules manufactured by IXYS. SCR MODULE 1.6KV 700A COMPACK. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 140°C (TJ), package / case ComPack.
In Stock: 5,749
| Attribute | Value |
|---|---|
| Product Status | Active |
| Structure | Series Connection - All SCRs |
| Number of SCRs, Diodes | 2 SCRs |
| Voltage - Off State | 1.6 kV |
| Current - On State (It (AV)) (Max) | 700 A |
| Current - On State (It (RMS)) (Max) | 1100 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Current - Gate Trigger (Igt) (Max) | 300 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 19000A, 20500A |
| Current - Hold (Ih) (Max) | 300 mA |
| Operating Temperature | -40°C ~ 140°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | ComPack |
