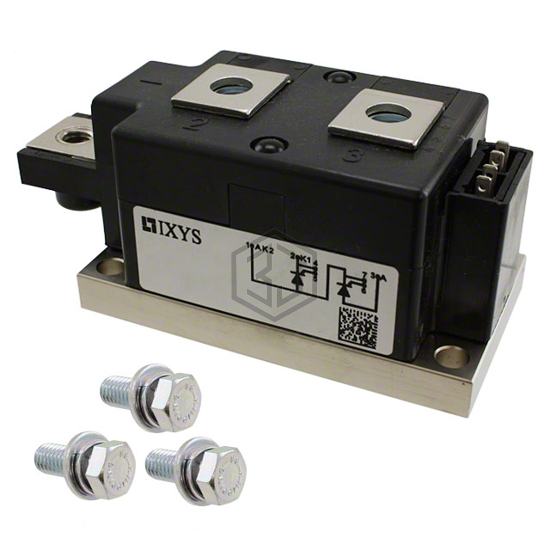

SCR MODULE 1.6KV 268A Y1-CU
MCMA265PD1600KB is a Thyristors - SCRs - Modules manufactured by IXYS. SCR MODULE 1.6KV 268A Y1-CU. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 140°C (TJ), package / case Y1-CU.
In Stock: 1,871
| Attribute | Value |
|---|---|
| Product Status | Active |
| Structure | Series Connection - SCR/Diode |
| Number of SCRs, Diodes | 1 SCR, 1 Diode |
| Voltage - Off State | 1.6 kV |
| Current - On State (It (AV)) (Max) | 268 A |
| Current - On State (It (RMS)) (Max) | 421 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 8500A, 9180A |
| Current - Hold (Ih) (Max) | 150 mA |
| Operating Temperature | -40°C ~ 140°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | Y1-CU |
