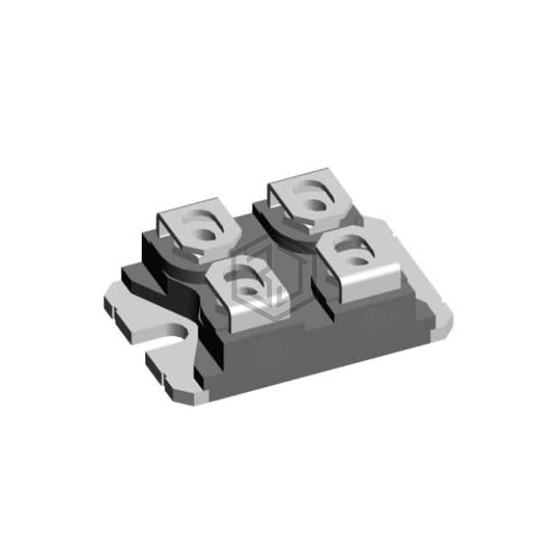

LSIC2SD120N40PA
SIC SCHOTTKY DIODE 1200V 2X20A
LSIC2SD120N40PA is a Diodes - Rectifiers - Arrays manufactured by IXYS. SIC SCHOTTKY DIODE 1200V 2X20A. Key specifications: mounting type Chassis Mount, package / case SOT-227-4, miniBLOC.
In Stock: 10
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Configuration | 2 Independent |
| Diode Type | Silicon Carbide Schottky |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Current - Average Rectified (Io) (per Diode) | 42A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 20 A |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Current - Reverse Leakage @ Vr | 100 µA @ 1200 V |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Mounting Type | Chassis Mount |
| Package / Case | SOT-227-4, miniBLOC |
| Supplier Device Package | SOT-227B |
Frequently Asked Questions
LSIC2SD120N40PA is a Diodes - Rectifiers - Arrays manufactured by IXYS. SIC SCHOTTKY DIODE 1200V 2X20A
The mounting type of LSIC2SD120N40PA is Chassis Mount.
The package type of LSIC2SD120N40PA is SOT-227-4, miniBLOC.
