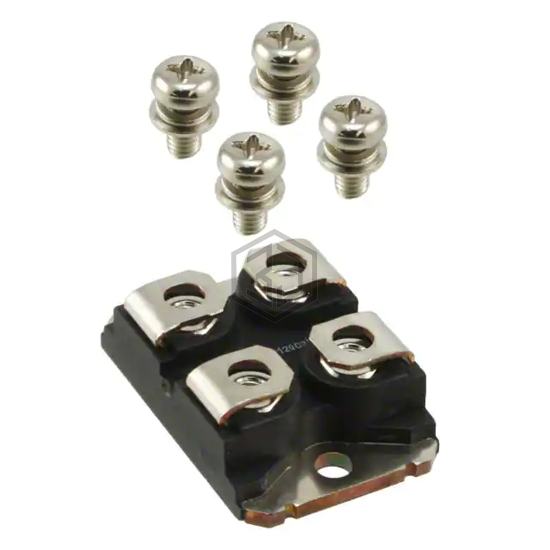

IGBT MOD 1200V 105A 500W SOT227B
IXYN82N120C3 is a Transistors - IGBTs - Modules manufactured by IXYS. IGBT MOD 1200V 105A 500W SOT227B. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-227-4, miniBLOC, current - collector (ic) (max) 105 A.
In Stock: 2,963
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Configuration | Single |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 105 A |
| Power - Max | 500 W |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 15V, 82A |
| Current - Collector Cutoff (Max) | 25 µA |
| Input Capacitance (Cies) @ Vce | 4.1 nF @ 25 V |
| Input | Standard |
| NTC Thermistor | No |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | SOT-227-4, miniBLOC |
| Supplier Device Package | SOT-227B |
Submit your RFQ for IXYN82N120C3 and get a quote within 24 hours.
