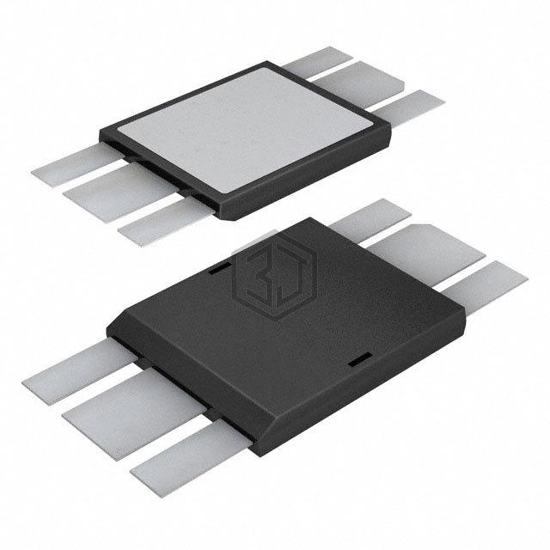

MOSFET N-CH 55V 550A DE475
IXTZ550N055T2 is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 55V 550A DE475. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 6-SMD, Flat Leads.
In Stock: 56
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 55 V |
| Current - Continuous Drain (Id) @ 25°C | 550A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 1mOhm @ 100A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 595 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 40000 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 600W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DE475 |
| Package / Case | 6-SMD, Flat Leads |
Submit your RFQ for IXTZ550N055T2 and get a quote within 24 hours.
