MOSFET N-CH 3000V 4A TO247PLUSHV

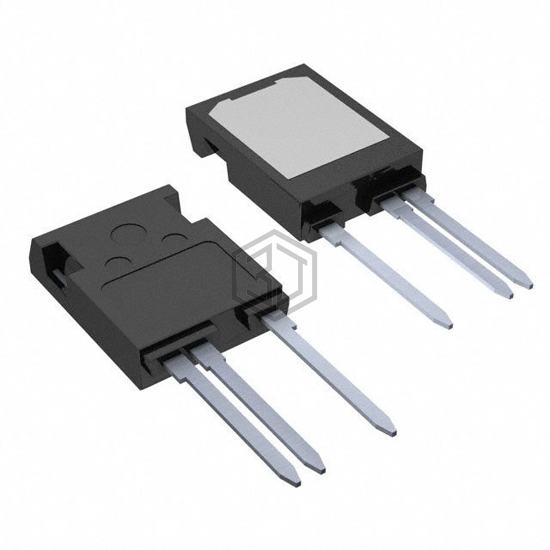

IXTX4N300P3HV is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 3000V 4A TO247PLUSHV. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3 Variant.
In Stock: 66
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 3000 V |
| Current - Continuous Drain (Id) @ 25°C | 4A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 12.5Ohm @ 2A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 139 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3680 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 960W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247PLUS-HV |
| Package / Case | TO-247-3 Variant |
Submit your RFQ for IXTX4N300P3HV and get a quote within 24 hours.
