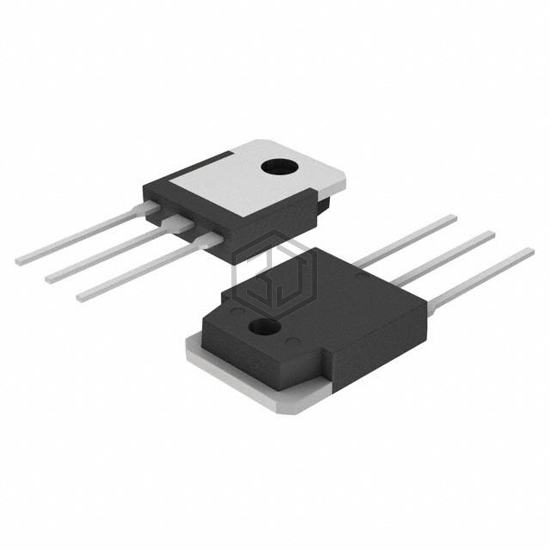

MOSFET P-CH 150V 44A TO3P
IXTQ44P15T is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET P-CH 150V 44A TO3P. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-3P-3, SC-65-3.
In Stock: 118
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 150 V |
| Current - Continuous Drain (Id) @ 25°C | 44A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 65mOhm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 175 nC @ 10 V |
| Vgs (Max) | ±15V |
| Input Capacitance (Ciss) (Max) @ Vds | 13400 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 298W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-3P |
| Package / Case | TO-3P-3, SC-65-3 |
Submit your RFQ for IXTQ44P15T and get a quote within 24 hours.
