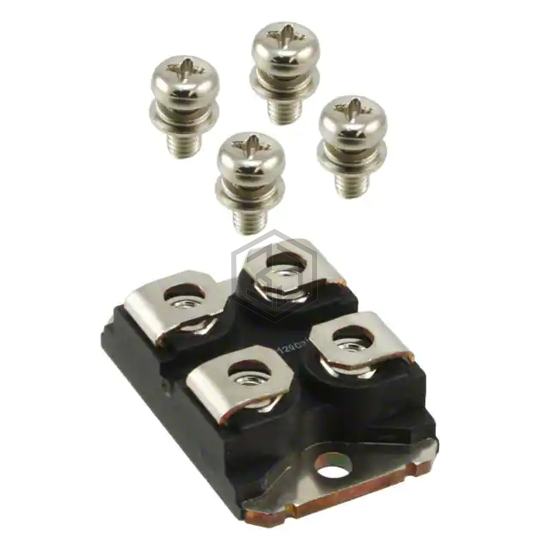

IGBT MOD 1200V 110A 500W SOT227B
IXSN55N120AU1 is a Transistors - IGBTs - Modules manufactured by IXYS. IGBT MOD 1200V 110A 500W SOT227B. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-227-4, miniBLOC, current - collector (ic) (max) 110 A.
In Stock: 1,457
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | - |
| Configuration | Single |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 110 A |
| Power - Max | 500 W |
| Vce(on) (Max) @ Vge, Ic | 4V @ 15V, 55A |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 8 nF @ 25 V |
| Input | Standard |
| NTC Thermistor | No |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | SOT-227-4, miniBLOC |
| Supplier Device Package | SOT-227B |
Submit your RFQ for IXSN55N120AU1 and get a quote within 24 hours.
