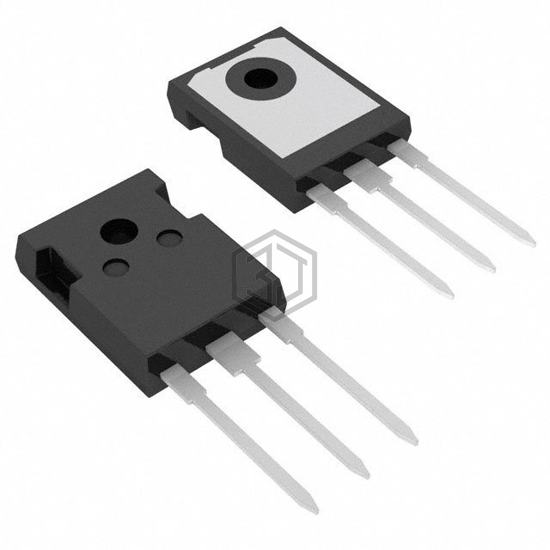

MOSFET N-CH 600V 35A TO247AD
IXKH35N60C5 is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 600V 35A TO247AD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3.
In Stock: 261
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 35A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 100mOhm @ 18A, 10V |
| Vgs(th) (Max) @ Id | 3.9V @ 1.2mA |
| Gate Charge (Qg) (Max) @ Vgs | 70 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2800 pF @ 100 V |
| FET Feature | Super Junction |
| Power Dissipation (Max) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247AD |
| Package / Case | TO-247-3 |
Submit your RFQ for IXKH35N60C5 and get a quote within 24 hours.
