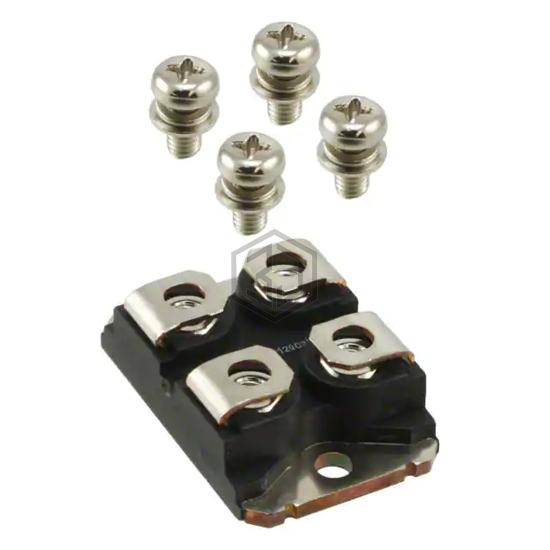

IGBT MOD 600V 78A 360W SOT227B
IXGN72N60C3H1 is a Transistors - IGBTs - Modules manufactured by IXYS. IGBT MOD 600V 78A 360W SOT227B. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-227-4, miniBLOC, current - collector (ic) (max) 78 A.
In Stock: 3,541
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | PT |
| Configuration | Single |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 78 A |
| Power - Max | 360 W |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 50A |
| Current - Collector Cutoff (Max) | 250 µA |
| Input Capacitance (Cies) @ Vce | 4.78 nF @ 25 V |
| Input | Standard |
| NTC Thermistor | No |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | SOT-227-4, miniBLOC |
| Supplier Device Package | SOT-227B |
Submit your RFQ for IXGN72N60C3H1 and get a quote within 24 hours.
