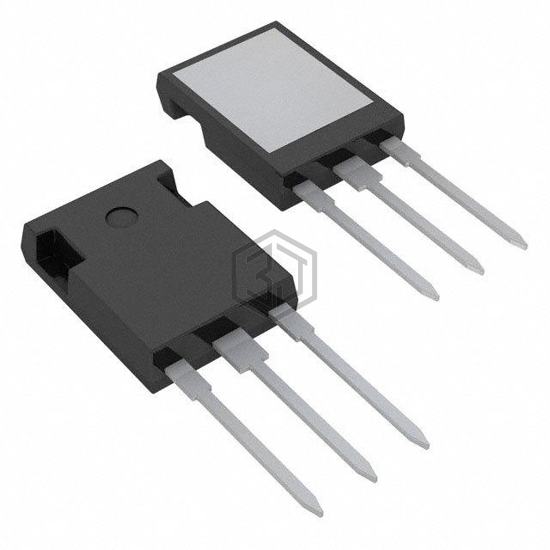

MOSFET N-CH 800V 25A ISOPLUS247
IXFR44N80P is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 800V 25A ISOPLUS247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3.
In Stock: 60
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 800 V |
| Current - Continuous Drain (Id) @ 25°C | 25A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 200mOhm @ 22A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 8mA |
| Gate Charge (Qg) (Max) @ Vgs | 200 nC @ 10 V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 12000 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 300W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | ISOPLUS247™ |
| Package / Case | TO-247-3 |
Submit your RFQ for IXFR44N80P and get a quote within 24 hours.
