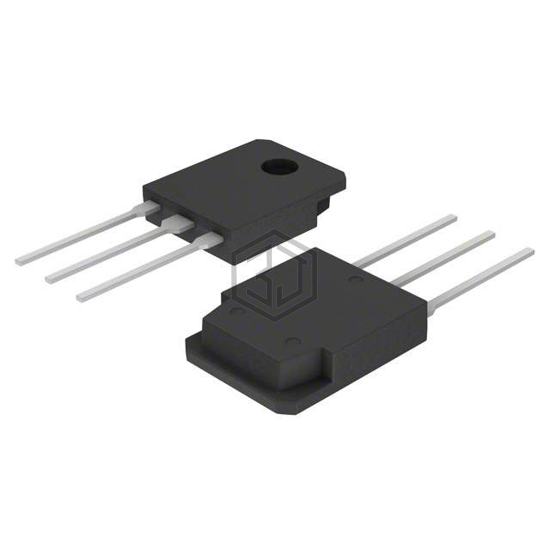

MOSFET N-CH 150V 130A TO247
IXFH130N15X3 is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 150V 130A TO247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3.
In Stock: 53
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 150 V |
| Current - Continuous Drain (Id) @ 25°C | 130A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 9mOhm @ 65A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 1.5mA |
| Gate Charge (Qg) (Max) @ Vgs | 80 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 5230 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 390W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247 (IXTH) |
| Package / Case | TO-247-3 |
Submit your RFQ for IXFH130N15X3 and get a quote within 24 hours.
