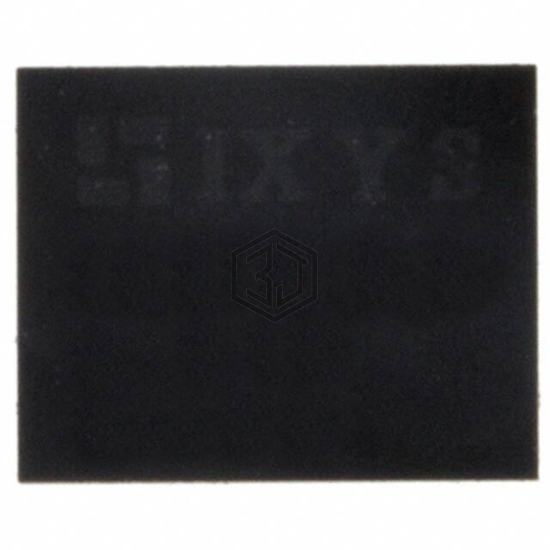

IC GATE DRVR LOW-SIDE 6DFN
IXDD509D1 is a PMIC - Gate Drivers manufactured by IXYS. IC GATE DRVR LOW-SIDE 6DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), voltage - supply 4.5V ~ 30V, package / case 6-VDFN Exposed Pad.
In Stock: 6,766
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 30V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 9A, 9A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 25ns, 23ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-VDFN Exposed Pad |
| Supplier Device Package | 6-DFN (4x5) |
IXDD509D1 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IXDN609SIA | IXYS Integrated Circuits Division | IC GATE DRVR LOW-SIDE 8SOIC | 98% | View |
| IXDD609SITR | IXYS Integrated Circuits Division | IC GATE DRVR LOW-SIDE 8SOIC | 98% | View |
| IXDN609SIATR | IXYS Integrated Circuits Division | IC GATE DRVR LOW-SIDE 8SOIC | 98% | View |
| IXDN609YI | IXYS Integrated Circuits Division | IC GATE DRVR LOW-SIDE TO263-5 | 98% | View |
| IXDD609YI | IXYS Integrated Circuits Division | IC GATE DRVR LOW-SIDE TO263 | 98% | View |
| IXDI609SITR | IXYS Integrated Circuits Division | IC GATE DRVR LOW-SIDE 8SOIC | 98% | View |
Submit your RFQ for IXDD509D1 and get a quote within 24 hours.
