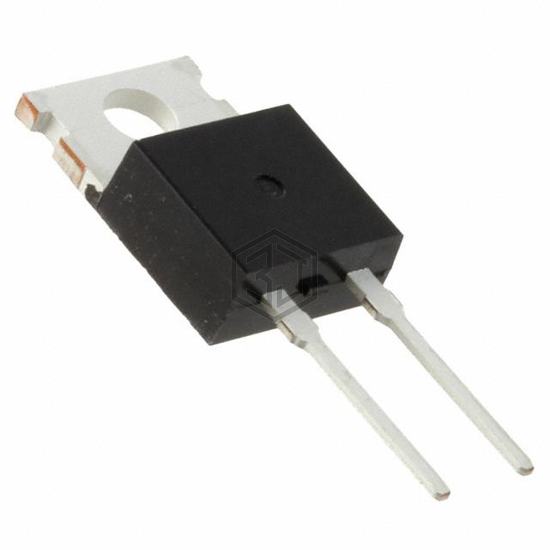

DPF30I300PA
DIODE GEN PURP 300V 30A TO220AC
DPF30I300PA is a Diodes - Rectifiers - Single manufactured by IXYS. DIODE GEN PURP 300V 30A TO220AC. Key specifications: mounting type Through Hole, package / case TO-220-2.
In Stock: 3,708
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 300 V |
| Current - Average Rectified (Io) | 30A |
| Voltage - Forward (Vf) (Max) @ If | 1.17 V @ 30 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 55 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 300 V |
| Capacitance @ Vr, F | 42pF @ 150V, 1MHz |
| Mounting Type | Through Hole |
| Package / Case | TO-220-2 |
| Supplier Device Package | TO-220AC |
| Operating Temperature - Junction | -55°C ~ 175°C |
Frequently Asked Questions
DPF30I300PA is a Diodes - Rectifiers - Single manufactured by IXYS. DIODE GEN PURP 300V 30A TO220AC
The mounting type of DPF30I300PA is Through Hole.
The package type of DPF30I300PA is TO-220-2.
