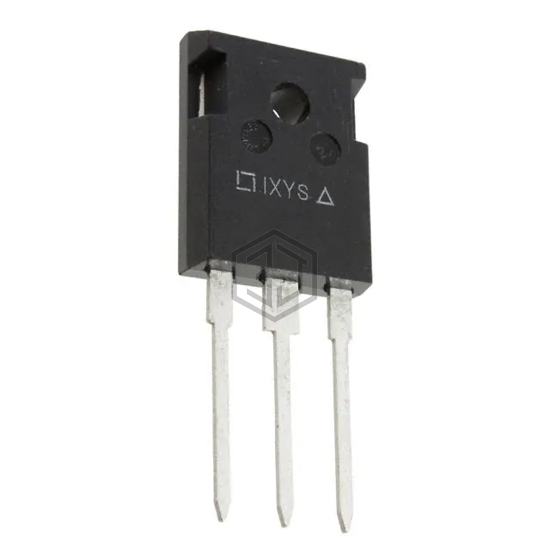

CS45-16IO1
SCR 1.6KV 75A TO247AD
CS45-16IO1 is a Thyristors - SCRs manufactured by IXYS. SCR 1.6KV 75A TO247AD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 140°C, package / case TO-247-3.
In Stock: 5,203
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Off State | 1.6 kV |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Current - Gate Trigger (Igt) (Max) | 100 mA |
| Voltage - On State (Vtm) (Max) | 1.64 V |
| Current - On State (It (AV)) (Max) | 48 A |
| Current - On State (It (RMS)) (Max) | 75 A |
| Current - Hold (Ih) (Max) | 100 mA |
| Current - Off State (Max) | 5 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 520A, 560A |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 140°C |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247AD |
Frequently Asked Questions
CS45-16IO1 is a Thyristors - SCRs manufactured by IXYS. SCR 1.6KV 75A TO247AD
The mounting type of CS45-16IO1 is Through Hole.
The operating temperature range of CS45-16IO1 is -40°C ~ 140°C.
The package type of CS45-16IO1 is TO-247-3.
